Overview

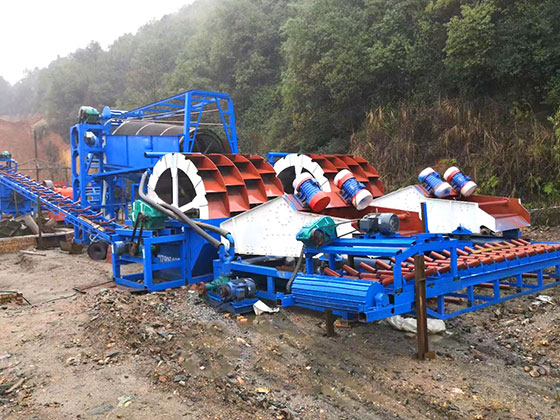

Dehydration dewatering screen is a machine specifically designed to separate liquids from solid-liquid mixtures, typically used to process materials containing a large amount of moisture. It uses the sieve holes and mechanical vibration of the sieve to separate solid particles from liquids, thereby achieving the purpose of dehydration.
Structure:
Dehydration dewatering screen is mainly composed of a screen box, an exciter, a support system, and a motor.
-
Working principle
1. The working principle of dehydration screen is mainly to separate the moisture in the water containing material through the mechanism of vibration screening, thereby achieving the dehydration effect.
2. Dehydration screen vibrates the screen surface through a vibration mechanism, and the material is fed into the screen surface through the feeding port. Under the action of vibration, the material forms a layer of particle accumulation on the screen surface. Larger particles are blocked above the screen surface, forming a slurry layer, while smaller particles enter the bottom of the screen through the screen holes. The water is gradually discharged through the filtering medium to achieve the dehydration effect
-
Features & Benefits
1.High screening efficiency:
Dehydration screens can design materials to be in a micro throwing motion state, reducing the wear of slot plates and thus improving screening efficiency.
2.Good dehydration effect:
Through slow vibration, the dehydration screen can effectively separate the moisture in the material, achieving the dehydration effect.
3.Simple structure:
The dehydration screen has a small volume, light weight, simple and compact structure, low energy consumption, low noise, which is conducive to energy saving and improving the working environment.
4.Easy maintenance:
The dewatering surface of the dewatering screen is polished with a mirror finish, which will not damage the food packaging. The dewatering tank can be disassembled for easy cleaning and replacement.
5.Wide applicability:
Dehydration screens are widely used in industrial sectors such as coal preparation, mineral processing, power, and sugar production. They are suitable for dry wet classification, dehydration, media removal, and sludge removal of medium and fine particle materials.
6.Strong durability:
The mesh material of the dehydration screen is made of molecular polyurethane, which has characteristics such as impact resistance, low temperature resistance, wear resistance, and chemical corrosion resistance, and has a long service life.
7.Low noise:
The device has low noise and is suitable for use in environments that require low noise
-
Specifications
Model Capacity(tph) Screen area W*L(mm) Screen material Power Weight Dimension L*W*H(mm) STD250 50-70 900-1800 polyurethane 13.1 1460 3120*1300*2721 STD300 60-90 900*1800 polyurethane 17.2 1510 3120*1300*2721 STD350 80-120 900-1800 polyurethane 20.7 1700 3120*1300*2721 STD550 100-140 1200*2400 polyurethane 26.4 2170 3630*1600*2773 STD650 120-180 900-1800 polyurethane 34.4 2500 3630*1600*2773 STD750 160-240 1200*2400 polyurethane 41.4 2850 3630*1600*2773 STD900 180-270 1500*3000 polyurethane 51 3500 4600*1900*2612 -
