Overview

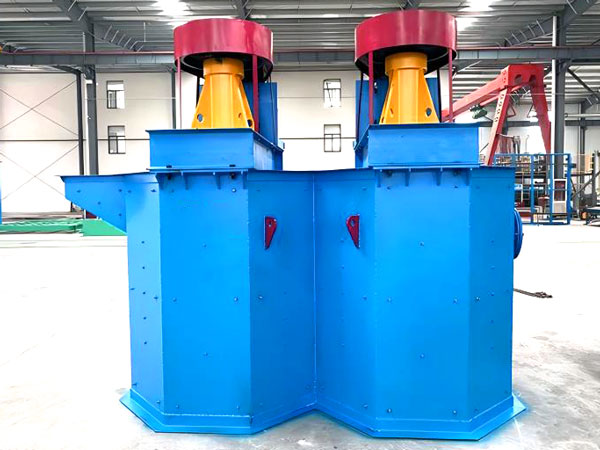

Attrition cells scrubbers , aimed at removing impurities and soil from the surface of ores through strong friction and scrubbing, thereby improving the purity and quality of ores & sands .
Attrition cells scrubbers play an important role in improving ore grade and reducing equipment wear, and are widely used in the processing of metal and non-metal ores.
Meanwhile , clean ore can also reduce equipment wear and extend machine lifespan.
-
Working principle
Working principle:Based on the physical cleaning method, the dust and impurities attached to the surface of the ore are removed through the rotation of the robotic arm and brush, assisted by high-pressure water flow.
1. After the equipment is started, the ore is vigorously wiped in the drum or tank to achieve a thorough cleaning effect.
2. Specifically, the ore enters the scrubbing machine chamber through the feeding pipeline, and under the stirring effect of the impeller, the slurry generates intense turbulence. The mineral particles rub and collide with each other, and the impurity film wrapped on the surface of the mineral particles is easily peeled off due to its low strength.
3. At the same time, the cement on the mineral surface will loosen and disintegrate after being soaked in water and then subjected to strong friction and collision between mineral particles, thus achieving the separation of clay and mineral particles
-
Features & Benefits
1. Efficient scrubbing effect:
Attrition cells scrubbers generate a negative pressure zone through the blades, and the material is thoroughly stirred and washed as it passes through. The blades push out and flow along the barrel wall, allowing the material to be thoroughly scrubbed and removing mud and sand from the ore;
2. Low energy consumption and low maintenance:
The impeller of attrition cells scrubbers is located above the "slurry sedimentation zone", with low starting power, easy operation, simple structure, large effective volume, small footprint, and long service life;
3. Strong adaptability:
Attrition cells scrubbers is suitable for slurries of different concentrations and can adjust the relative positions of feeding, discharging, and motors according to user needs, with high flexibility
-
Specifications
Model Box size(m³) Feeding size(mm) Impeller Diameter(mm) Capacity(tph) Power(kw) Dimension(mm) CX0.25-1 0.25 ≤10 240 2-10 3 710*708*1310 CX0.25-2 0.25*2 ≤10 240*2 2-10 3*2 1365*708*1310 CX0.5-1 0.5 ≤10 320 5-20 5.5 922*886*1550 CX0.5-2 0.5*2 ≤10 320*2 5-20 5.5*2 1761*886*1550 CX1-1 1 ≤10 480 10-40 15 1180*1142*2057 CX1-2 1*2 ≤10 480*2 10-40 15*2 2276*1142*2057 CX2-1 2 ≤10 520 20-70 30 1597*1597*2775 CX2-2 2*2 ≤10 520*2 20-70 30*2 3075*1597*2775 CX4-1 4 ≤10 770 40-100 55 1900*1752*3470 CX4-2 4*2 ≤10 770*2 40-100 55*2 3712*1752*3470 Structure

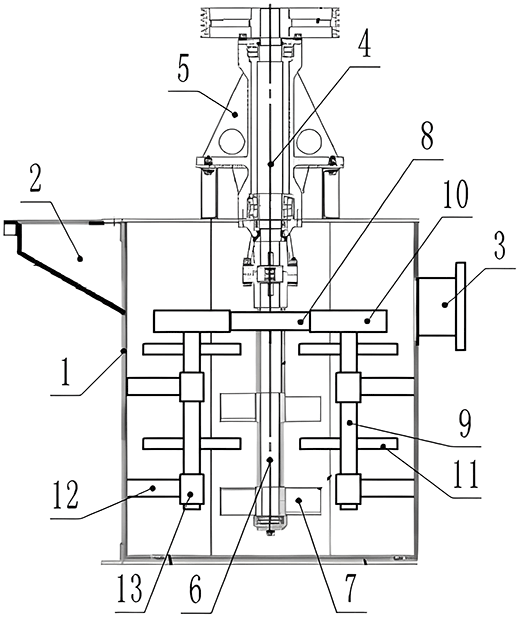

1.scrubbing machine cylinder, 2.feed inlet, 3.discharge outlet, 4.drive shaft, 5.support frame, 6.mixing shaft, 7.mixing blades, 8.drive gear, 9.driven shaft, 10.driven teeth, 11.mixing blades, 12.fixed rod, 13.shaft sleeve
-
