Overview
Topsoil screen trommel widely used in industries such as agriculture, building materials, mining, coal, electricity, etc., it is used to separate materials of different particle sizes to meet the requirements of production processes. Its advantages include simple structure, easy operation, low maintenance cost, high screening efficiency, strong adaptability, and low noise.
To ensure the normal operation and prolong the service life of the equipment, it is recommended to regularly inspect and maintain each component, clean the sieve holes in a timely manner to prevent blockage, and maintain the cleanliness and lubrication of the equipment.
What is topsoil ?
The formation of topsoil is a complex process that mainly involves weathering of rocks, accumulation of organic matter, and microbial activity.
Structure
1.Electronic Control: One click control of equipment operation
2.Motor: Provides vibration force, with a single flange structure, easy to install and maintain
3.Reducer: Reduce speed while increasing output torque to ensure stable operation of the equipment

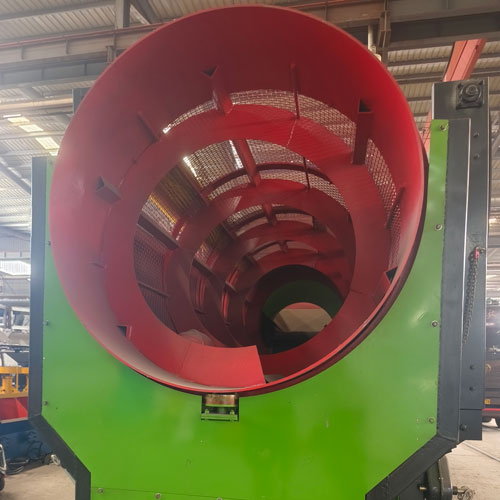

4.Roller device: using a combination screen, the material rotates and grades inside the roller cage, and flows out uniformly from the discharge port below
5.Rack: Made of high-quality carbon steel plates and channel steel welded together to ensure the stability of the equipment
6.Sealing cover: prevents material leakage and external dust from entering
7.Mobile tyres & lifting legs: For easy loading and transporting
-
Working principle
By rotating and tilting the drum, the material is flipped and rolled on the screen surface, thereby achieving material screening.
Specifically, the electric motor is connected to the drum device through a reducer, driving the drum to rotate around its axis.
After the material enters the drum, it flips and rolls on the screen surface due to the inclination and rotation of drum.
Qualified materials (screened products) are discharged from the discharge port at the bottom of the rear end of drum, while unqualified materials (screened products) are discharged from the discharge port at the tail of drum
-
Features & Benefits
1. High sorting accuracy:
Topsoil screen trommel can achieve high-precision sorting by controlling the particle size, which is suitable for processing various materials.
2. Wide applicability:
Topsoil screen trommel is suitable for grading in sand and stone yards, and can efficiently separate materials of different particle sizes.
3. Efficient production:
The design of topsoil screen trommel enables large material handling capacity and high production efficiency, making it suitable for large-scale production needs.
4. Simple and reliable structure:
Topsoil screen trommel is composed of a motor, reducer, drum device, etc. It has a simple structure, smooth operation, and high reliability.
5. Good sealing performance:
Topsoil screen trommel has good sealing performance, which can effectively prevent dust leakage and reduce environmental pollution.
6. Low failure rate:
Due to its simple structure and reliable design, the failure rate of topsoil screen trommel is low, reducing downtime in production.
-
Specifications
Model Drum size(m) Drum inclination Drum speed Mesh size(mm) Max feeding size(mm) capacity(m³/h) Motor power (degree) (r/min) (kw) GST820 Φ0.8x2 6-10 32 < 200 Mesh sizex2.5 7-30 3 GST830 Φ0.8x3 6-10 32 < 200 Mesh sizex2.5 8-50 3 GST1020 Φ1x2 6-10 25 < 200 Mesh sizex2.5 10-60 4 GST1030 Φ1x3 6-10 25 < 200 Mesh sizex2.5 11-80 4 GST1230 Φ1.2x2 6-10 20 < 200 Mesh sizex2.5 12-100 5.5 GST1240 Φ1.2x4 6-10 20 < 200 Mesh sizex2.5 14-120 5.5 GST1530 Φ1.5x3 6-10 17 < 200 Mesh sizex2.5 16-120 5.5 GST1540 Φ1.5x4 6-10 17 < 200 Mesh sizex2.5 18-150 7.5 GST1550 Φ1.5x5 6-10 17 < 200 Mesh sizex2.5 20-180 11 GST1560 Φ1.5x6 6-10 17 < 200 Mesh sizex2.5 2<2000<> 11 GST1850 Φ1.8x5 6-10 14 < 200 Mesh sizex2.5 24-220 15 GST1860 Φ1.8x6 6-10 14 < 200 Mesh sizex2.5 26-240 15 GST2050 Φ2x5 6-10 12 < 200 Mesh sizex2.5 50-600 22 GST2080 Φ2x8 6-10 12 < 200 Mesh sizex2.5 80-700 22 GST2260 Φ2.2x6 6-10 10 < 200 Mesh sizex2.5 100-800 30 GST2280 Φ2.2x8 6-10 10 < 200 Mesh sizex2.5 120-850 30 -
