Overview
Rotary drum scrubber, also known as cylindrical washing machine, sieve screen machine.
Structure:

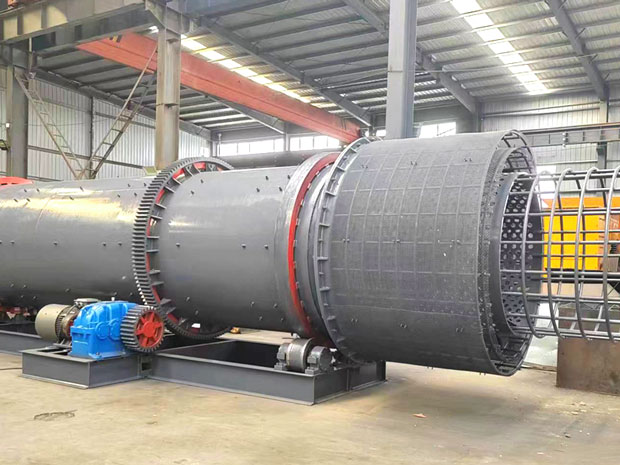

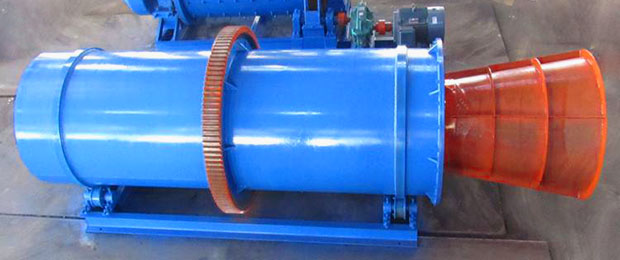

It mainly consists of a closed ore washing cylinder and a double-layer drum screen connected to the end of the cylinder.
The cylinder is supported horizontally by four rollers on two steel rings outside the cylinder.
The rotation is driven by a small gear through the gear ring in the middle of the cylinder.
A lining plate is longitudinally installed on the inner wall of the cylinder, and there are ribs on the lining plate.
The reinforcing bars are arranged in a spiral pattern, with the pitch gradually increasing towards one end of the sieve, used to stir and push the material out.
Rotary drum scrubber application:
1.Removing impurities:
Mainly used to remove impurities such as mud, sand, and stone powder from ores, and improve the purity of ores.2.Improving ore taste:
Through cleaning, the taste of ore can be effectively improved, especially for ores with high mud content, such as sand gold, tungsten tin, manganese ore, iron ore, quartz sand, kaolin, etc.3.Prevent equipment blockage:
Avoid clogging of crushing or screening equipment with mud containing mineral raw materials to ensure smooth operation of the production line.
-
Working principle
Rotary drum scrubber screen mainly consists of a closed ore washing cylinder and a double-layer drum screen connected to the end of the cylinder. The cylinder is supported horizontally by four rollers on two steel rings outside the cylinder. The rotation is driven by a small gear through the gear ring in the middle of the cylinder. A lining plate is longitudinally installed on the inner wall of the cylinder, and there are ribs on the lining plate. The reinforcing bars are arranged in a spiral pattern, with the pitch gradually increasing towards one end of the sieve, used to stir and push the material out.
The ore, along with the feed water, is fed into the cylinder through one end of the feed inlet. It undergoes immersion in water and mutual impact and friction during rotation, causing the clay and ore blocks to dissociate. Introduce high-pressure water from the discharge end of the drum screen and flow in the opposite direction to the ore block. The washed clay and fine particles are discharged from the feeding end with overflow. The block and granular materials are lifted by the lifting wheel at the end of the cylinder and unloaded onto the double-layer conical cylinder screen. Add rinsing water to the double-layer sieve as well. The conical drum sieve rotates together with the cylinder, dividing the material into three particle sizes: coarse, medium, and fine. Combine fine-grained and ore washing overflow.
-
Features & Benefits
Efficient cleaning and impurity removal:
By utilizing the rotation of the drum and the flushing effect of water, the soil and impurities on the surface of the ore can be effectively removed, improving the quality and purity of the ore.Efficient screening function:
The equipment is equipped with a sieve inside, which can screen the cleaned ore according to different particle sizes, improving production efficiency.Strong adaptability:
Suitable for cleaning and screening ores of different specifications and types, it has strong adaptability and can meet the needs of different users.Energy conservation and environmental protection:
Adopting advanced energy-saving technologies can effectively reduce energy consumption and minimize environmental pollution. -
Specifications
Model GXS1048 GXS1260 GXS1580 GXS1890 GXS2010 GXS2214 Drum diameter（mm） 1000 1200 1500 1800 2000 200 Drum length（mm） 4800 6000 8000 9000 10000 14000 Rotary speed（r/min） 15-30 10-25 10-25 8-22 8-22 6-17 Capacity（t/h） 30-50 40-70 100-160 180-250 250-350 300-500 Power（kw） 11 15 22 30 37 45 Length（m） 6212 7250 8320 9380 10500 14600 Width（m） 1350 1560 1860 2220 2430 2640 Height（m） 1550 1700 2150 2510 2860 2950 Weight（t） 5.3 8.5 11.5 17.5 22.3 31.5 Related:
-
