Overview

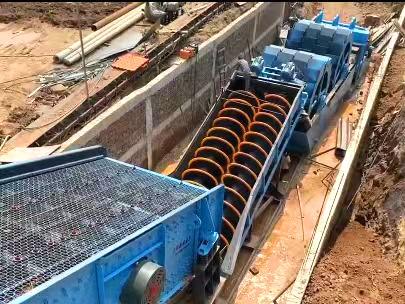

Screw sand washer divided into two types: single spiral sand washing machine and double spiral sand washing machine. Mainly used for washing, grading, and impurity removal in industries such as highways, hydropower, and construction, as well as for washing and selecting fine-grained and coarse-grained materials.
Spiral sand washing machine mainly composed of spiral blades, cleaning tank, and driving device.
1. Spiral blade: the core components,for pushing sand and gravel to roll and stir in the cleaning tank
2. Cleaning tank: provides a working environment to ensure thorough mixing of sand and water;
3. Driving device: provides power to rotate the spiral blades
-
Working principle
1. Spiral device inside the washer is used to stir sand and gravel, causing material to roll and stir in the water, achieving the purpose of cleaning and grading.
2. Specifically: spiral sand washing machine needs to be arranged obliquely. The spiral blades push the sand and gravel in the cleaning tank, mixing them with water. Through the action of the spiral device, the water and impurities in the sand and gravel are discharged from the equipment outlet, while the sand and gravel are discharged from the other end, achieving the effect of cleaning and screening
-
Features & Benefits
1. Large processing capacity:
The spiral sand washing machine has strong processing capacity and is suitable for large-scale sand production lines.
2. High cleanliness:
Capable of cleaning fine grained stones, with significant cleaning effect.
3. Wide applicability:
Suitable for cleaning and grading materials of various hardness levels
-
Specifications
Model Sprial pcs Diameter(mm) Tank length(mm) Capacity(t/h) Rotary speed (r/min) Power(kw) Weight(t) LSX610 1 610 7225 40-50 32 7.5 3.09 LSX762 1 762 7620 55-75 26 11 5.23 LSX920 1 920 7585 100 21 11 6.2 2LSX920 2 920 7585 200 21 11*2 11.5 LSX1120 1 1120 9750 175 17 18.5 10.9 2LSX1120 2 1120 9750 350 17 18.5*2 17.8 -
