Overview
Stone soil roller screen (also called stone mud separator ) plays an important role in material classification, which is a common screening equipment.
Application
Mainly used for separation operations of high humidity and high viscosity materials. Can be used for coarse and fine materials such as mining stone, mining ore, mud stone, soil rock, sand gravel, large and small stones, coal, construction waste, and stale waste.
Structure

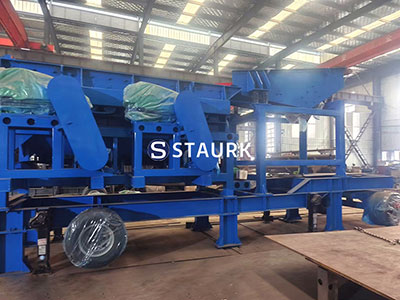

Stone soil roller screen includes box, lining plate, disc, transmission shaft, reducer, motor, etc.
The box is welded from Q345 steel plate, which has high strength and rigidity.
The lining plate is made of wear-resistant manganese plate, which is easy to replace.
The disc is made of thickened high manganese material, which is sturdy and wear-resistant.
The reducer is used to control the speed of the rollers, ensuring uniform distribution and efficient separation of materials on the screen surface.
-
Working principle
The working principle of a soil stone roller screen is to separate soil and stones by the rotation of the rollers.
1. The soil roller screen is mainly composed of multiple rollers, with discs installed on the rollers.
2. After the equipment is started, the mud and rock mixture enters the equipment through the chain plate conveyor.
3. The motor drives the roller to rotate, and the roller drives the disc to rotate, causing the material on the screen surface to move forward accordingly.
Stone and large material are moved towards one end by the roller belt and discharged from the end;
Soil and small particles smaller than the roller gap are discharged from the bottom of the equipment,and transported out through a belt conveyor.
-
Features & Benefits
1. Efficient separation:
Through the rotation of the roller and the driving effect of the disc, efficient mud and rock separation can be achieved, improving processing capacity and screening efficiency.
2. Strong adaptability:
Suitable for materials with various humidity and viscosity, such as sand, ore, household waste, industrial waste, etc., which can reduce the load on subsequent sorting equipment.
3. Environmental protection and energy conservation:
No need for water washing, reducing the use of water resources.
4. Novel structure:
Reasonable design, easy maintenance, long service life
-
Specifications
Model Width（mm） Length（mm） Roller number Motor number Motor power（kw） Capacity（t/h） ST0808Z 800 2300 8 1 15 70-100 ST0810Z 800 2900 10 1 18.5 80-130 ST1008Z 1000 2300 8 1 18.5 100-150 ST1010Z 1000 2900 10 2 15 120-180 ST1012Z 1000 3300 12 2 15 130-200 ST1310Z 1300 3000 10 2 18.5 150-300 ST1312Z 1300 3600 12 2 18.5 180-350 ST1315Z 1300 4500 15 3 15 200-400 ST1510Z 1500 3000 10 2 18.5 300-450 ST1515Z 1500 4600 15 3 15 350-500 ST1520Z 1500 6000 20 4 18.5 380-550 ST1812Z 1800 3800 12 2 22 400-600 ST1820Z 1800 6300 20 4 18.5 450-650 ST1830Z 1800 9500 30 6 18.5 500-1000 -
