Mobile gold trommel screen China

Gold trommel screen can be divided into Fixed trommel screen and mobile trommel screen, trommel screen is widely used in the gold ore beneficiation process, which can effectively process a large amount of materials, has high screening accuracy, and is not easy to block the screen mesh. Its structure is simple, easy to operate, and maintenance cost is low, suitable for various types of materials and different production process requirements

Application:

Suitable for cleaning and screening impurities and soil from various ores such as gold mining, tin mining, diamonds, as well as large particle minerals.

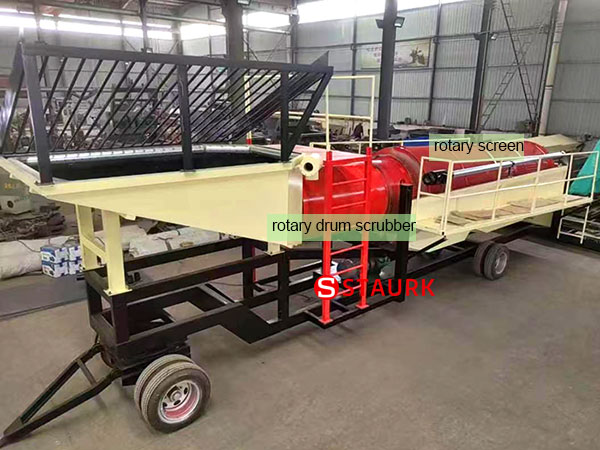

Combines rotary scrubber and rotary screen

1 Combines washing & screen function

1.1 Washing by rotary scrubber

Separate ore using gravity, buoyancy, and centrifugal force. During the rotation of the drum, the nozzle sprays a high-pressure water column to wash away impurities and soil from the surface of the ore.

Meanwhile, due to centrifugal force, minerals of different densities are separated, improving the extraction efficiency of target minerals such as gold.

1.2 Screen by rotary screen

After entering the drum, the ore is subjected to centrifugal force generated by the rotation of the drum. The ore with larger particle size will flow forward along the inclination angle of the drum, while the ore with suitable particle size will be screened out one by one and fall into their respective funnels after passing through the sieve. The screened ore is transported to the finished product pile by belt conveyor.
