Overview

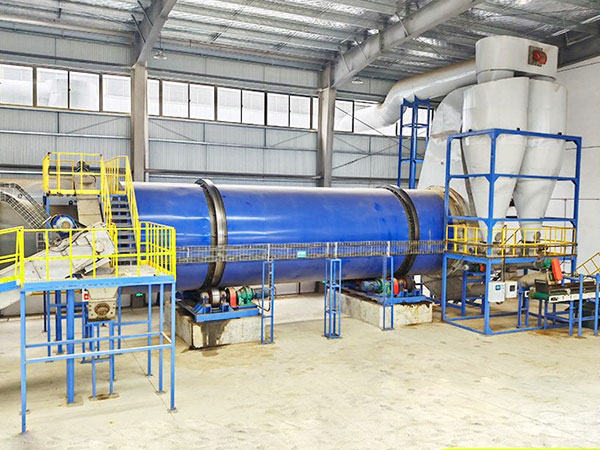

Coconut dryer mainly consists of a feed conveyor, a rotary drum dryer, a discharge conveyor, a dust collector, an induced draft fan, and an electrical control system.
This system has the advantages of energy saving and low consumption technology,
Our company through the precise temperature control and scientific sealing technology to achieve a safe and efficient production process, clean and environmentally friendly.
-
Working principle
Its working principle is to send wet materials into the drum dryer through a conveyor, and the materials are continuously picked up by the plate. The materials are evenly dispersed and in full contact with hot air, achieving heat exchange between the materials and hot air.
The coconut that achieve the drying effect will be discharged from the discharge port, thus completing the entire drying process.
-
Features & Benefits
1. High degree of automation, adopting intelligent control system, capable of 24-hour continuous drying.
2. It has a wide range of applications, not only for drying coconut shreds, but also for drying leaves, sawdust, sawdust, etc., achieving multi-purpose use with one machine.
3. There are various heat sources available, including traditional coal, natural gas, and diesel, as well as firewood, palm shells, and biomass particles as fuels.
4. The entire drying system is flexible in configuration, and can be equipped with supporting systems such as wire cutting equipment, feeding and discharging, heat source, conveying, dust removal, etc. according to customer requirements.
-
Specifications
Specification STJG1210 STJG1410 STJG1610 STJG2010/3 STJG2210/3 STJG2510/3 STJG2512/3 STJG2912/3 Capacity(t/d) 33.6 40.8 58.9 131.4 145 167.7 204 247 Daily Output(t/d) 15.6 19.2 27.7 61.8 68.2 78.9 96 116.2 Water Evaporation Capacity (t/h) 0.75 0.9 1.3 2.9 3.2 3.7 4.5 5.45 Raw Moisture (%) 60-80 60-80 60-80 60-80 60-80 60-80 60-80 60-80 Final Moisture (%) 12-15（adjustable） Drying Temperature(℃) 350-550 350-550 350-550 350-550 350-550 350-550 350-550 350-550 Total Weight(kg) 32 40 55 95 100 125 145 165 Plant Area(㎡) 15000 17000 21500 26500 28500 370000 41000 45500 Device Specification(m) 5*14 5*14 6*16 8*16 8*16 10*16 10*18 10*20 -
